PFW European Version Impact Crusher

Choose your preferred machinery when purchasing equipment, and provide free shuttle transportation to visit and inspect the factory.

Processing Capacity:50-700t/

Feed Particle Size:≤850mm

Applicable Materials:Limestone, granite, river pebbles, cobblestones, quartz stone, dolomite, iron ore, concrete, coal, gypsum, etc.

Application Scope:It is widely used in ore crushing, railways, highways, large-scale water conservancy and hydropower, construction projects, machine-made sand production, dry mortar, concrete mixing stations, etc.

Online Service

+8613503852957: 7 * 24-hour Service Hotline

欧版反击式破碎机
European version impact crusher

The manufacturing process and structural design of the European version of the impact crusher make the finished product cubic, without tension and cracks, with good particle shape, adjustable discharge particle size, and diversified crushing specifications.

欧版反击破可破碎物料
European version of impact crusher that can break materials

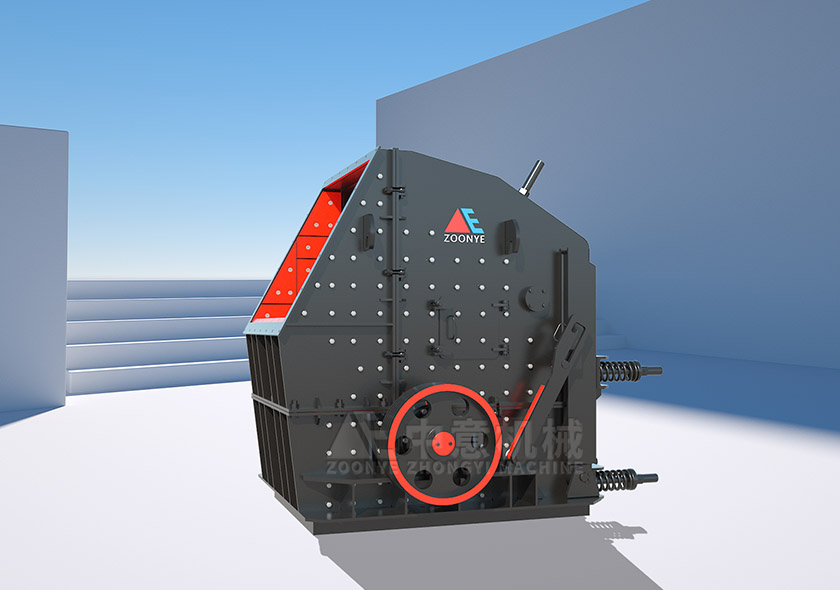

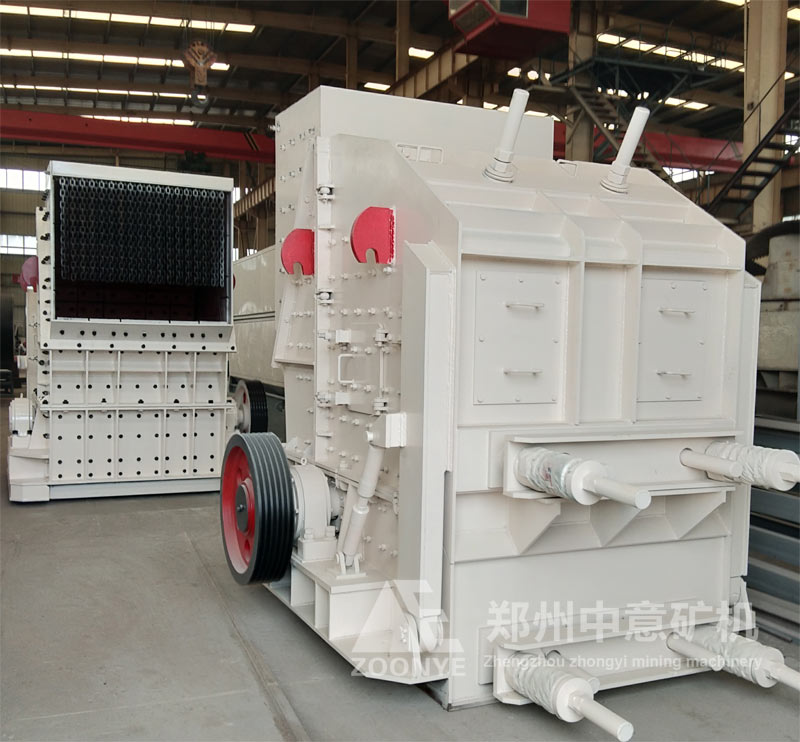

European version impact crusher

Impact crusher

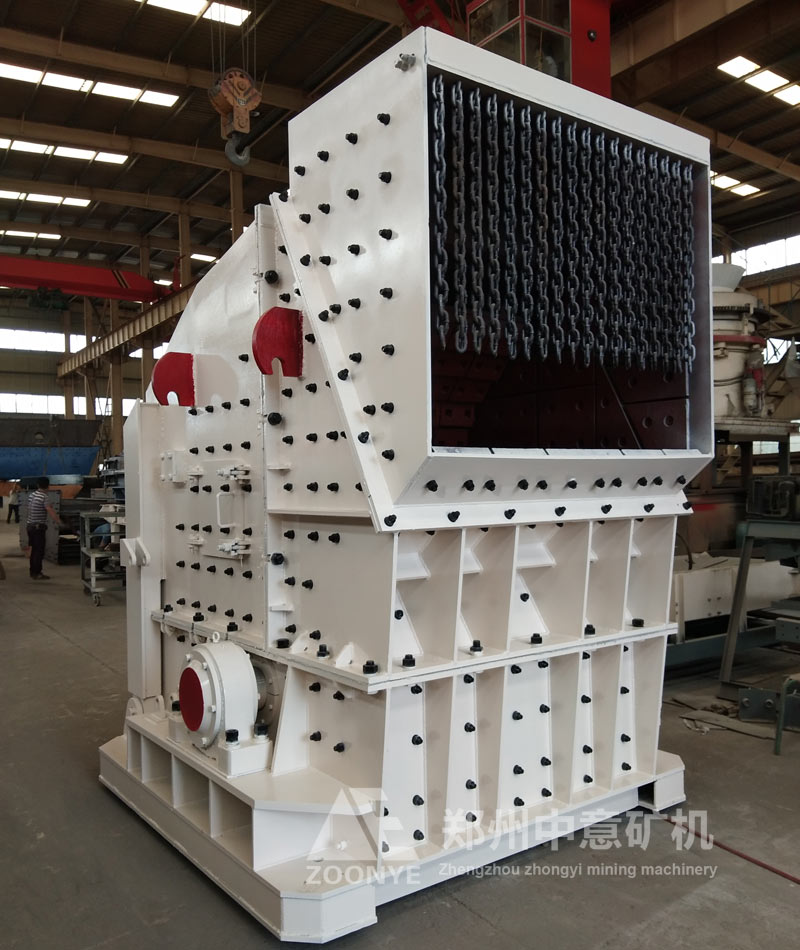

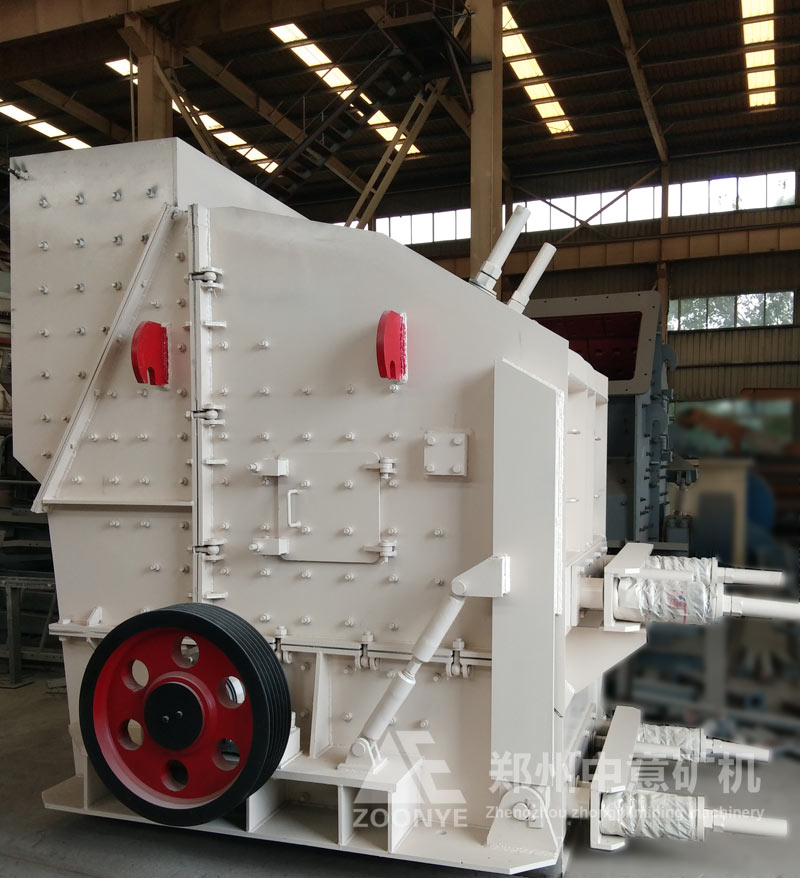

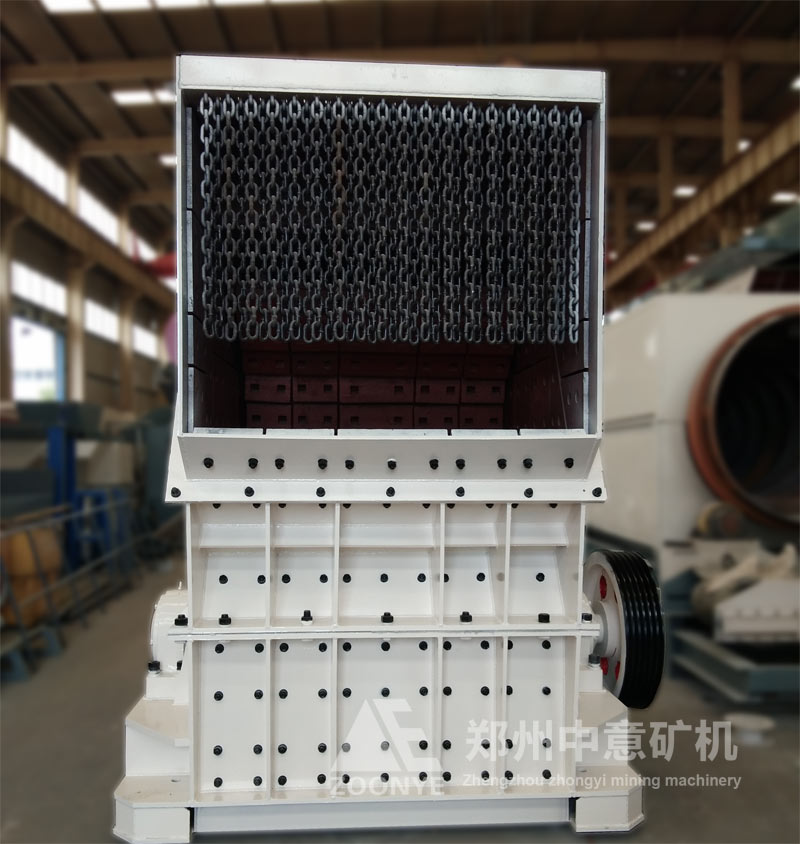

Real shot of the European version of counterattack breaking the factory

European version of counterattack crusher manufacturer

Advantages And Characteristics

Strong processing capacity and good particle shape. The equipment has a large crushing rate. The gap between the impact plate and the plate hammer can be flexibly controlled to control the discharged particle size and the particle shape is good. Structure and reliable performance: The structure is light and reasonable, the crushing performance is good, the quality is reliable and stable, the material adaptability is wide, and the safety and reliability are high. Energy saving, low cost The on-site crushing material production line effectively reduces production and operating costs. Wear parts and long life High-strength wear-resistant combination hammer with ribs at the joints to increase hammering strength, service life and safety.

Working Principle

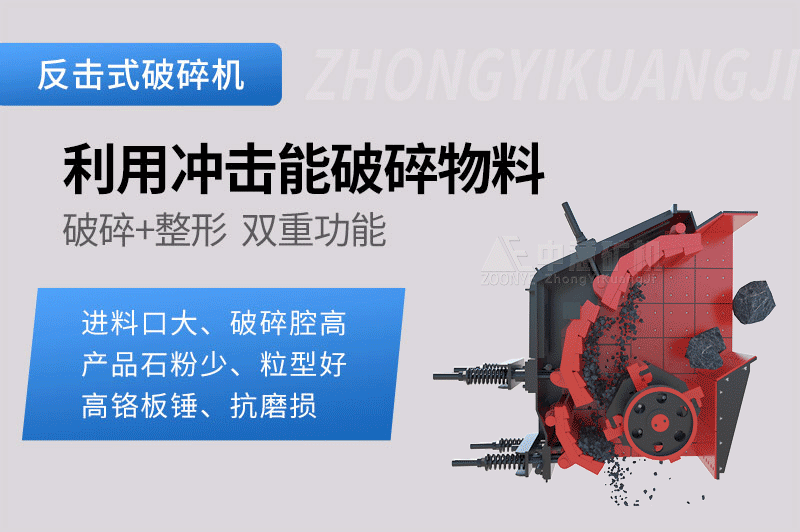

欧版反击破工作原理
Working principle of European version of counterattack

Based on novel design principles, the impact crusher adopts new concept crushing technology, which can adapt to the crushing of materials of different specifications and meet the requirements of the new process of "multiple crushing, less grinding". The application of the "stone rocking" principle makes the impact crusher not only have a high crushing rate, but also have low unit power consumption. It is a truly energy-saving crushing equipment. At the same time, long-term practice and large-scale projects have also proven that impact crushers are suitable in the field of mineral processing. It has good application prospects.

Technical Parameter

Model	Specification(mm)	Inlet size(mm)	Maximum feed soft(mm)	Maximum feed hard(mm)	Processing power(t/h)	Power(kw)	Dimensions（mm）
PFW0810	Φ800×1000	1080×1060	500	300	50-80	90	2900×2000×2500
PFW1310	Φ1300×1000	1170×1060	650	350	80-150	132-160	3250×2000×2650
PFW1314	Φ1300×1400	1170×1460	750	400	120-250	200-220	3450×2450×3000
PFW1315	Φ1300×1500	1290×1550	800	450	150-300	160-250	3500×2710×2800
PFW1318	Φ1300×1800	1170×1820	800	450	250-500	160×2	3500×3050×2800
PFW1520	Φ1500×2000	1200×2082	850	500	300-700	400-450	3828×3300×3215
