PE Series Jaw Crusher

PE jaw crusher manufacturer

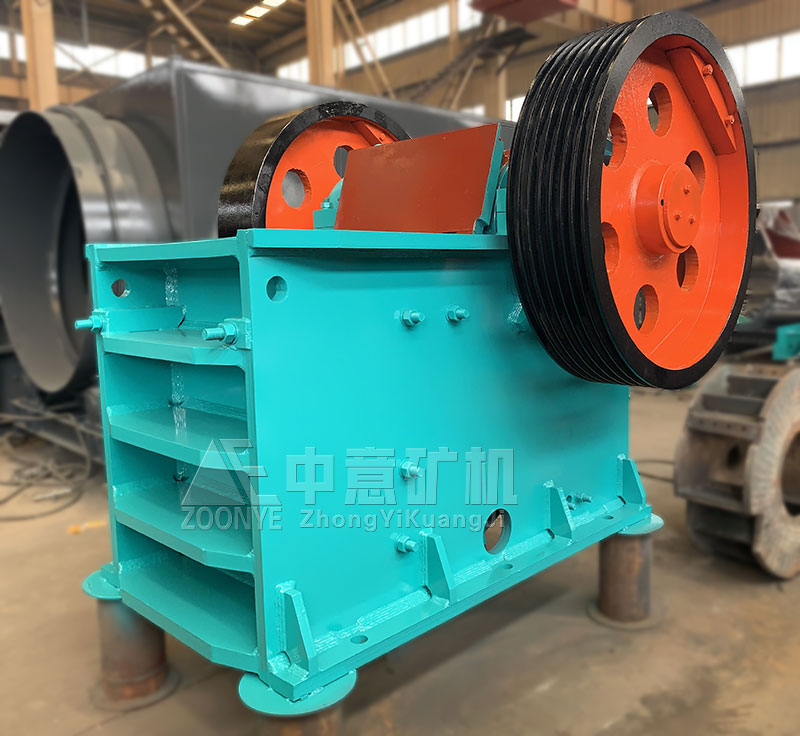

Real shot of PE jaw crusher workshop

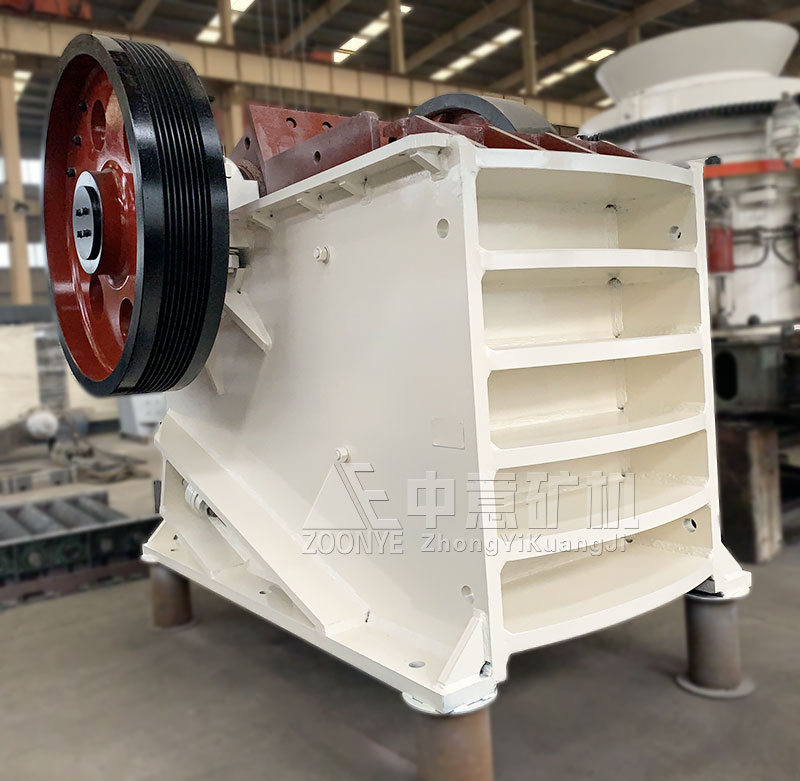

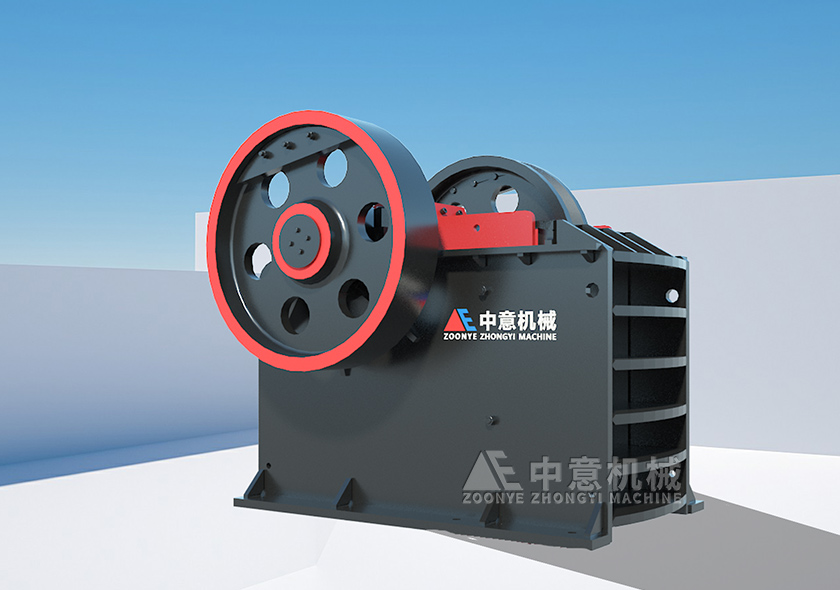

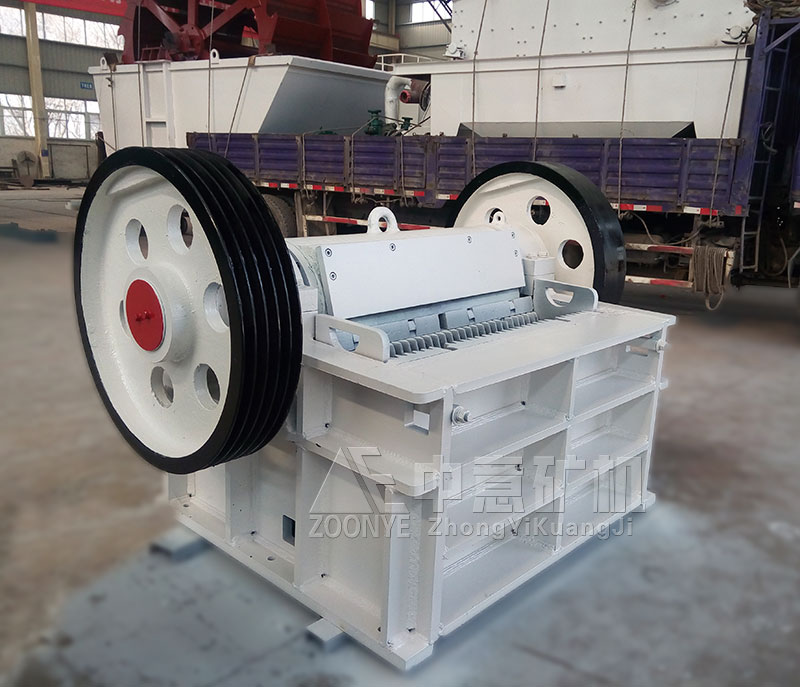

PE series jaw crusher

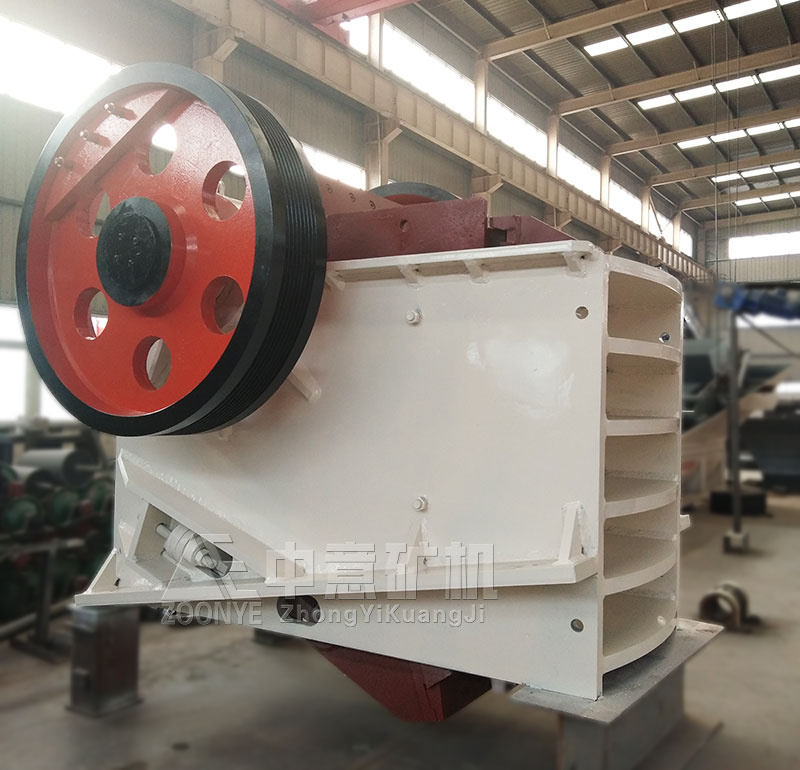

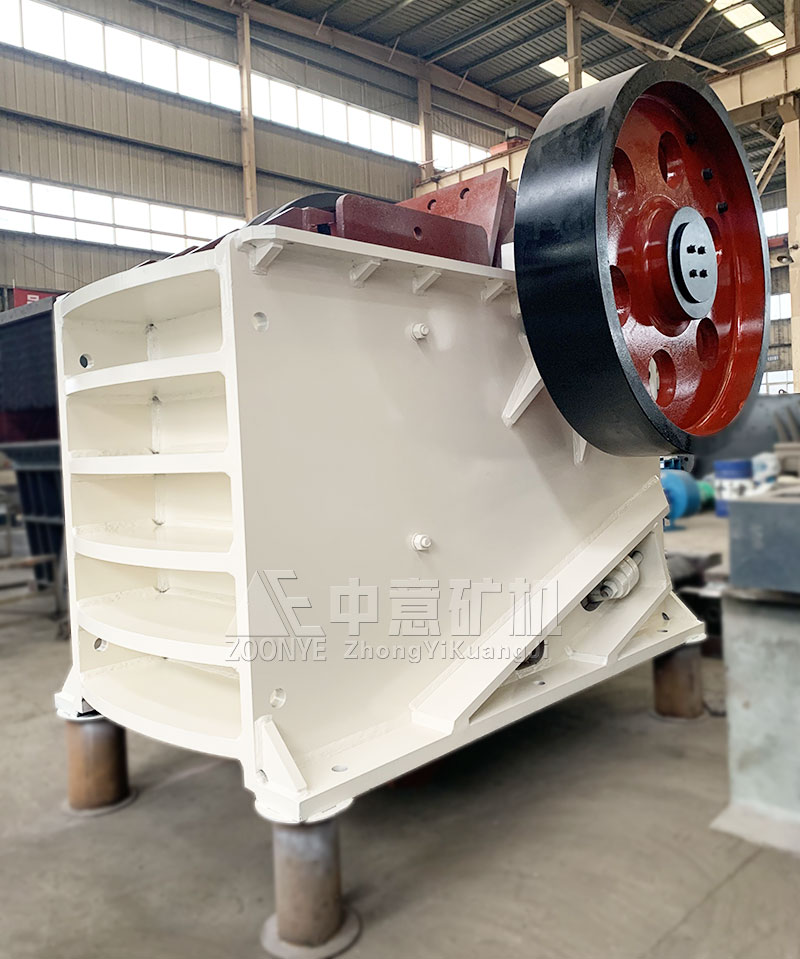

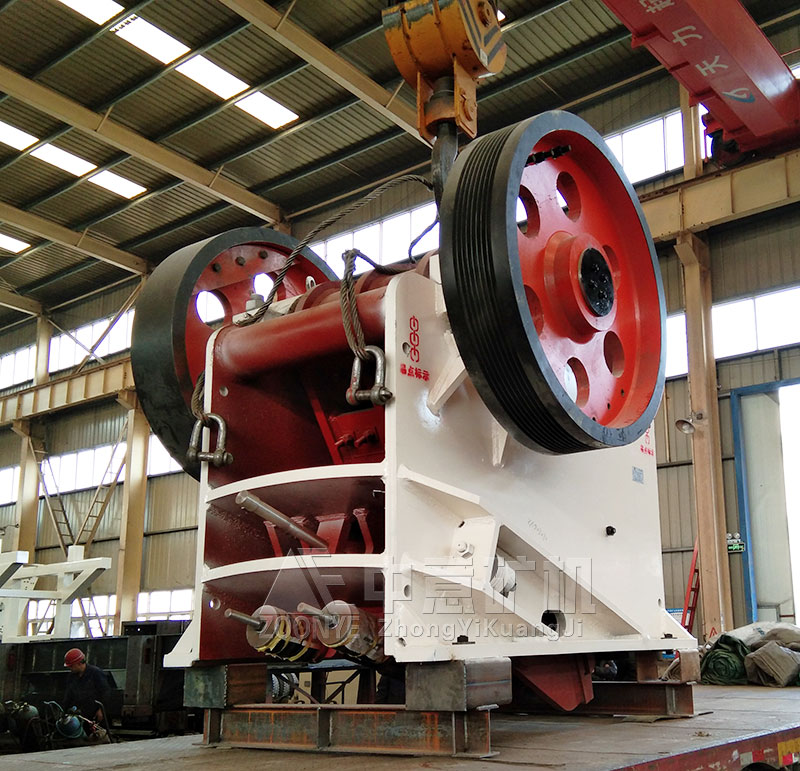

PE jaw crusher workshop

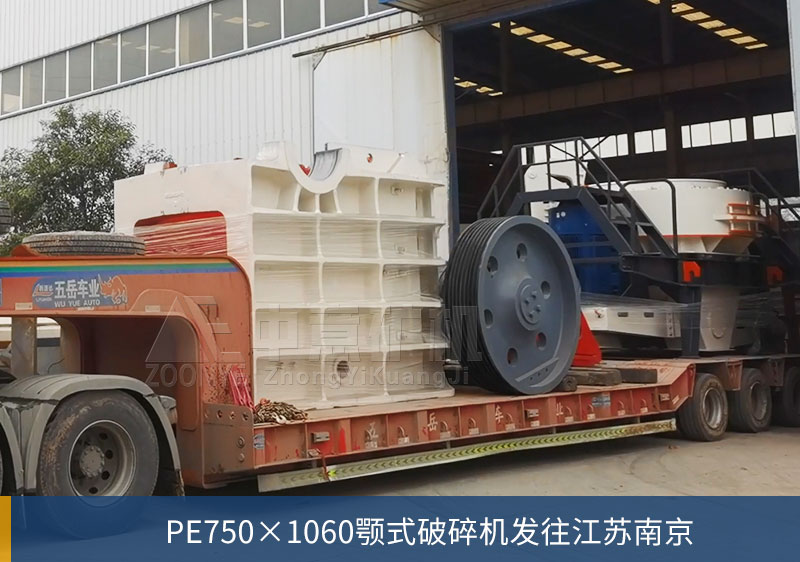

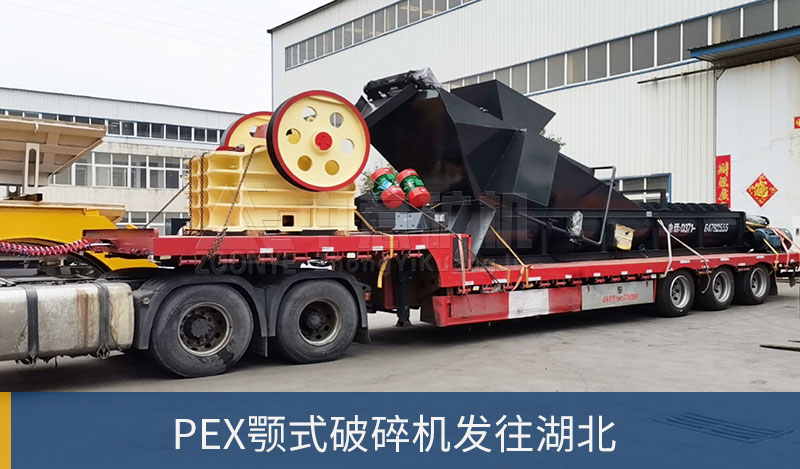

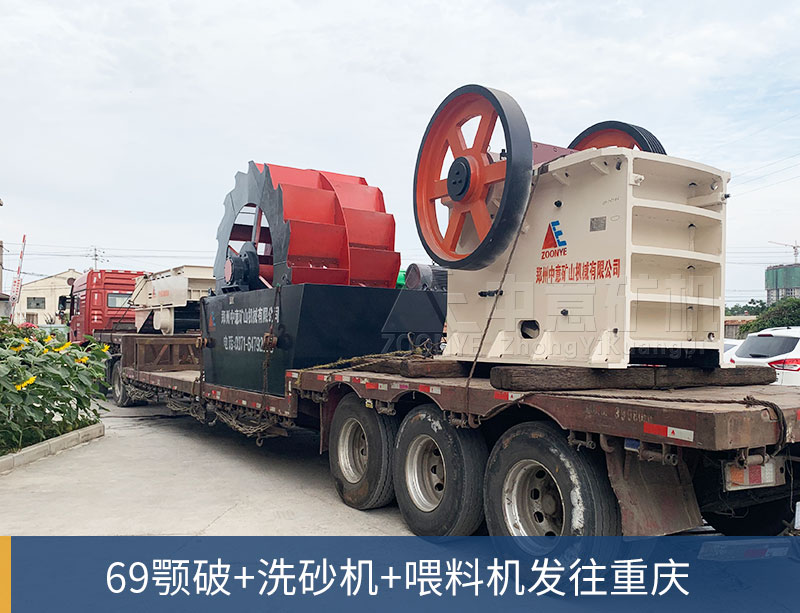

PE jaw crusher delivery

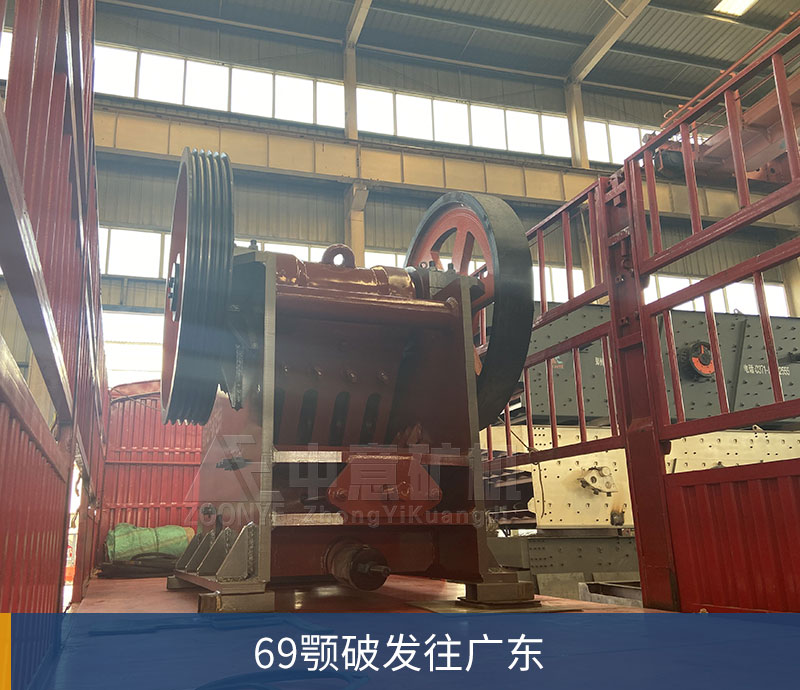

PE jaw crusher delivery site

PE series fine jaw crusher

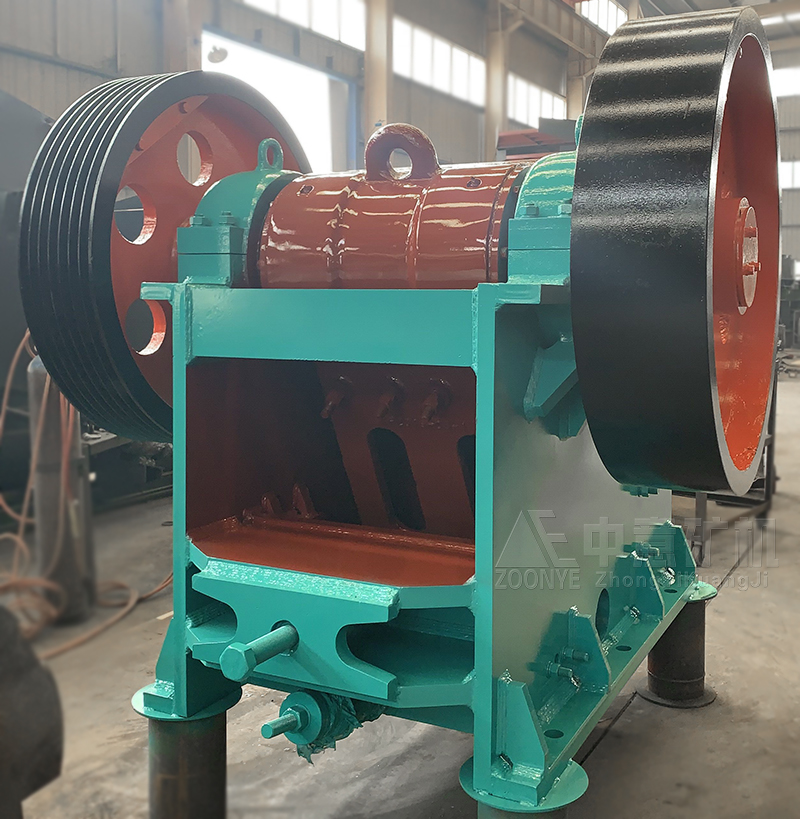

PE jaw crusher customized by foreign customers

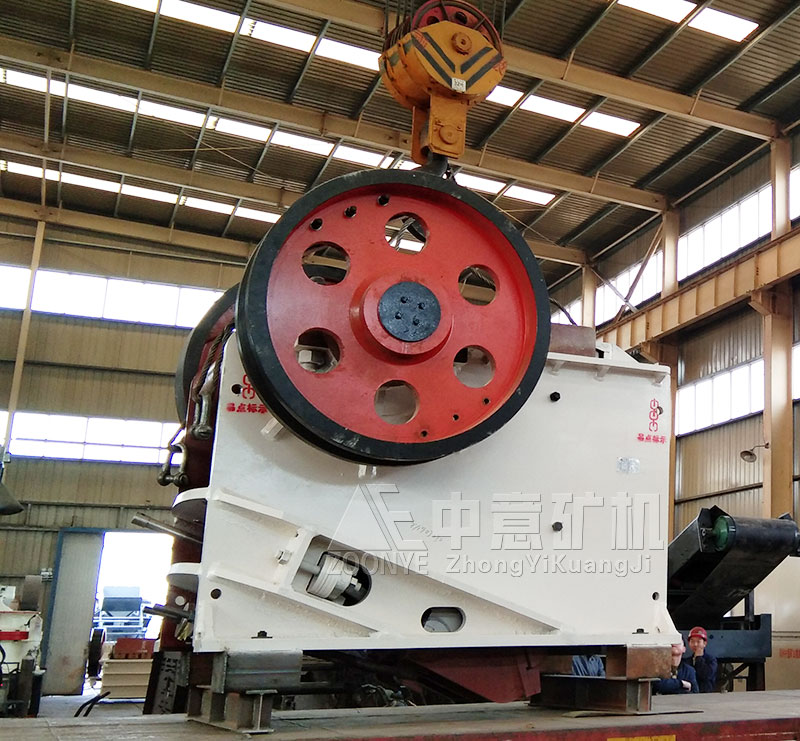

PE jaw crusher will be shipped soon

PE series jaw crusher is usually called crusher and is usually used as the primary crusher in various stone production lines and ore crushing production lines. This product simulates the dual motion of animals, crushing, crushing and crushing materials in the crushing chamber by moving and squeezing the two jaws.

Jaw crusher wear parts:

Zhongyi PE jaw crusher wear-resistant parts have long service life

According to different customer needs, we produce jaw plates of two materials, namely high manganese steel jaw plates and wear-resistant jaw plates. Although the materials are different, both jaw plates have undergone scientific and strict smelting, casting, heat treatment process design and production management. They have good overall performance, high reliability, strong wear resistance, low price and high cost performance.

Advantages And Characteristics

Good Stability and High Reliability The jaw assembly is made of high-quality steel castings, and the heavy-duty eccentric shaft is also machined from forged blanks, all of which make the jaw crusher very stable. Compared with other crushers of the same specification, we use larger and more durable eccentric shaft bearings, which makes them more load-bearing and ensures their reliability. Technology and long service life: It adopts heavyweight manufacturing technology and adopts the latest digital parts processing equipment to ensure the accuracy of machine parts; the use of high-quality materials greatly improves its pressure resistance and wear resistance, greatly extending the service life of the machine. Simple structure and easy maintenance. Through continuous improvement and optimization, the machine structure is simplified while ensuring the performance of the machine. The whole machine is simpler to operate and more convenient to maintain, which greatly shortens downtime and maintenance time. Large Capacity, Good Particle Size Using the latest crushing principle, the proportion of cubes in the product is significantly improved, and the needle-shaped stones reduce the particle size more evenly.

Working Principle

This product is driven by an electric motor. The eccentric shaft is driven by a V-belt and the pulley is driven by the motor pulley. The turntable reciprocates according to the predetermined trajectory and enters the crushing cavity composed of fixed raft, movable raft and side lining. The material breaks and the finished material is discharged through the lower discharge port.

Technical Parameter
